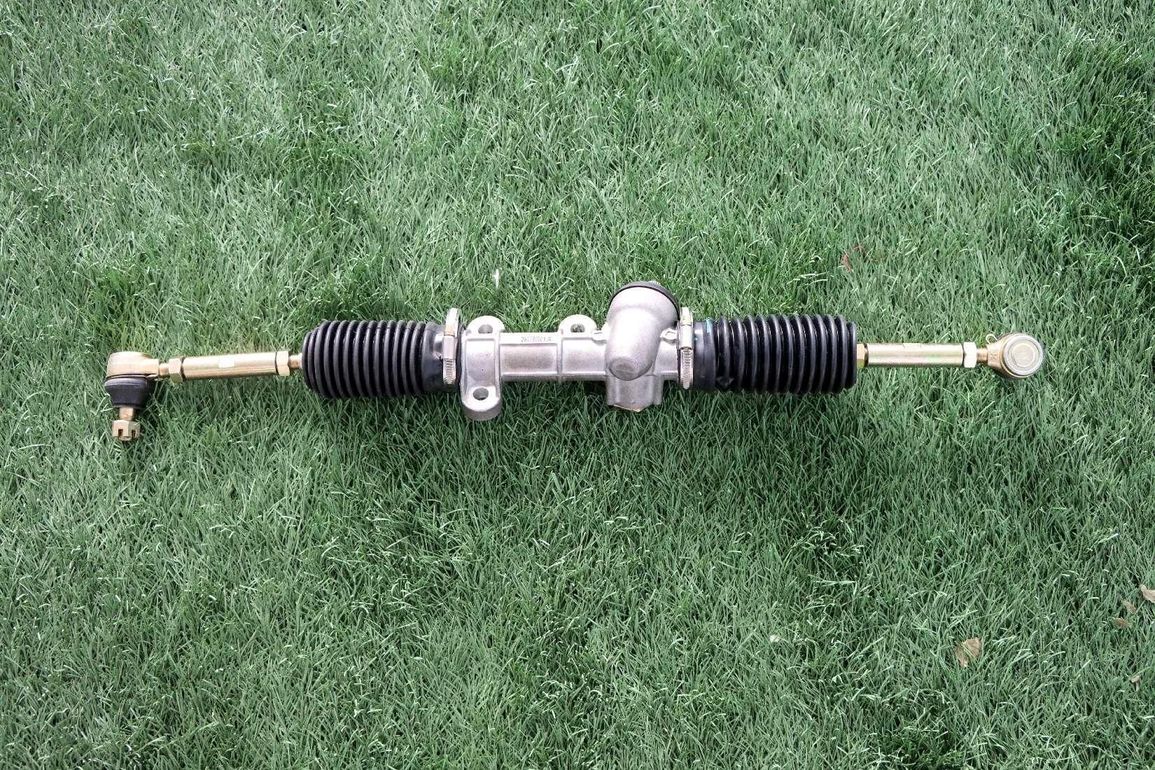

Self-adjusting rack and pinion steering gear box for ORVIK electric industrial vehicles.
Reinforced steel rear trailing arm suspension bracket for rugged mining and farm environments.

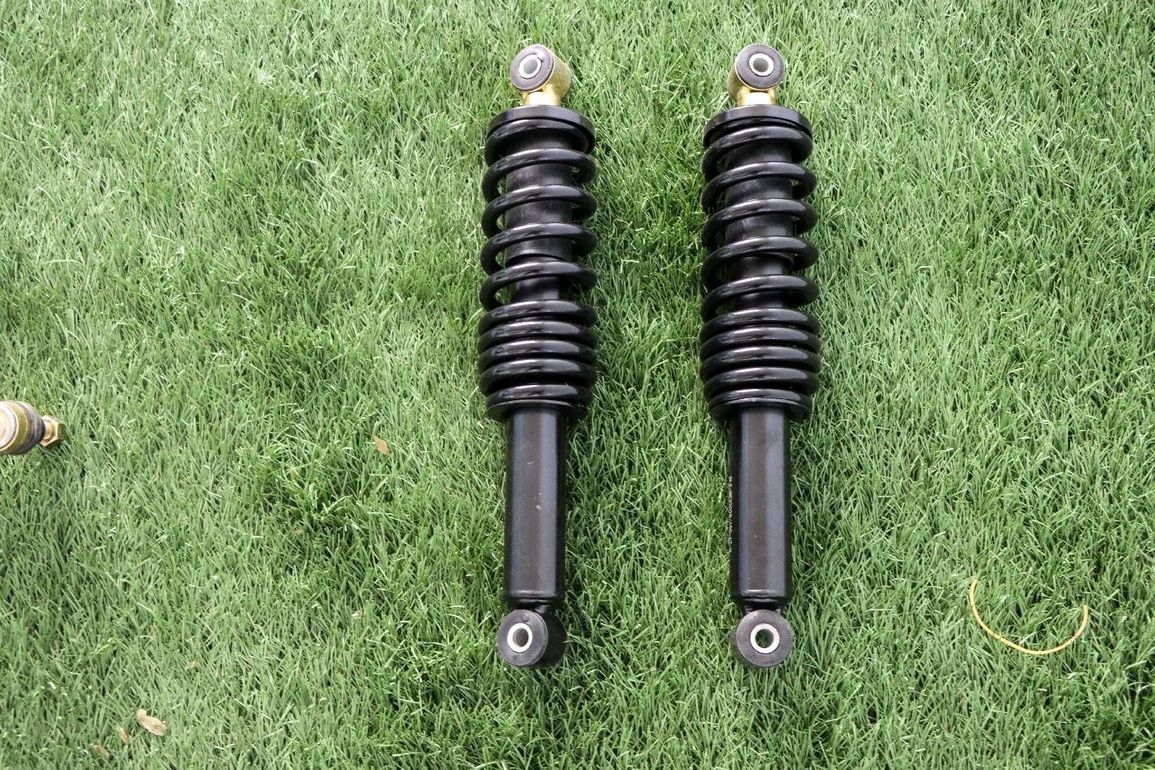

High-load capacity rear coil spring for electric pickup and utility trucks, designed for heavy cargo.

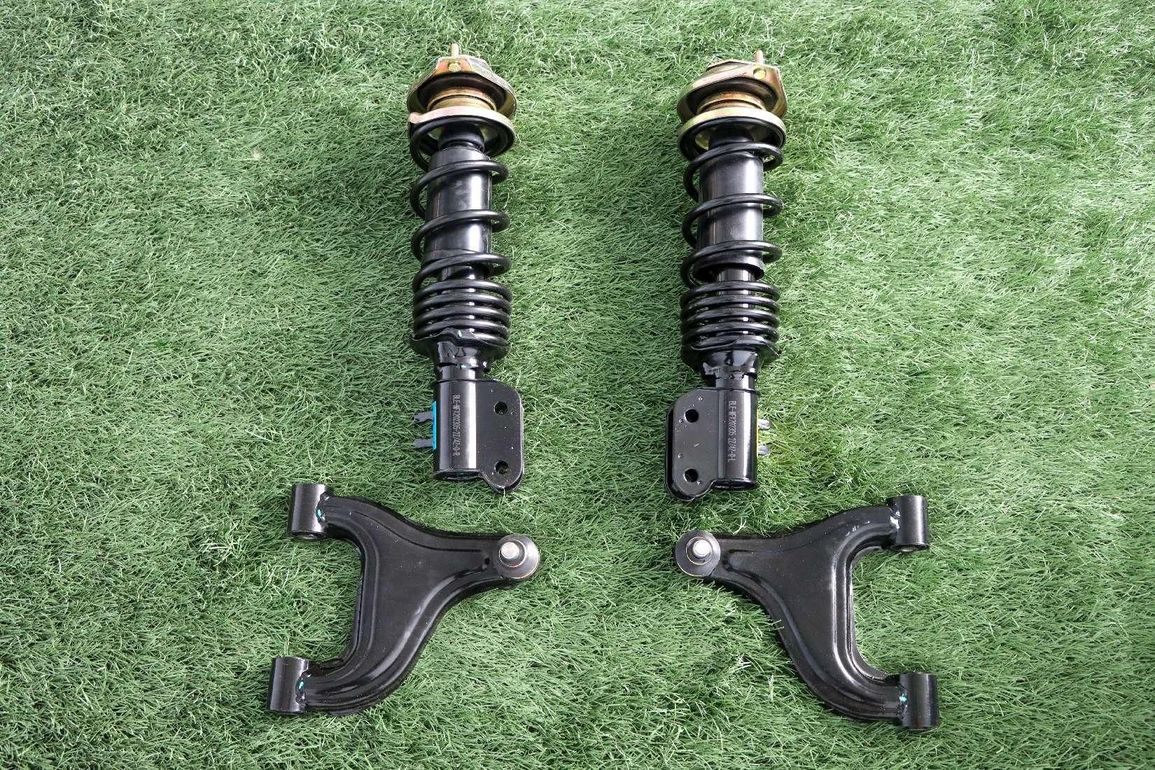

Heavy-duty elevated McPherson independent front suspension for ORVIK off-road electric utility vehicles.

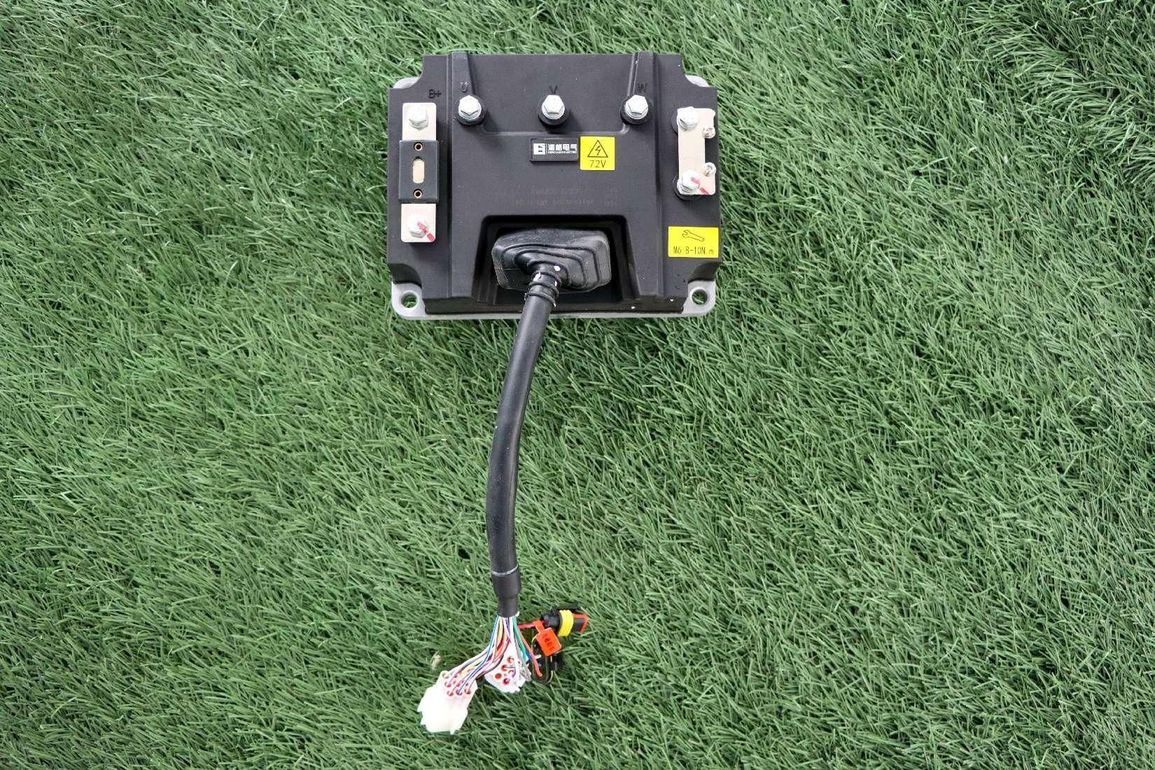

Intelligent EV motor controller (Hercules Series) with high-temperature protection for Middle East climates.

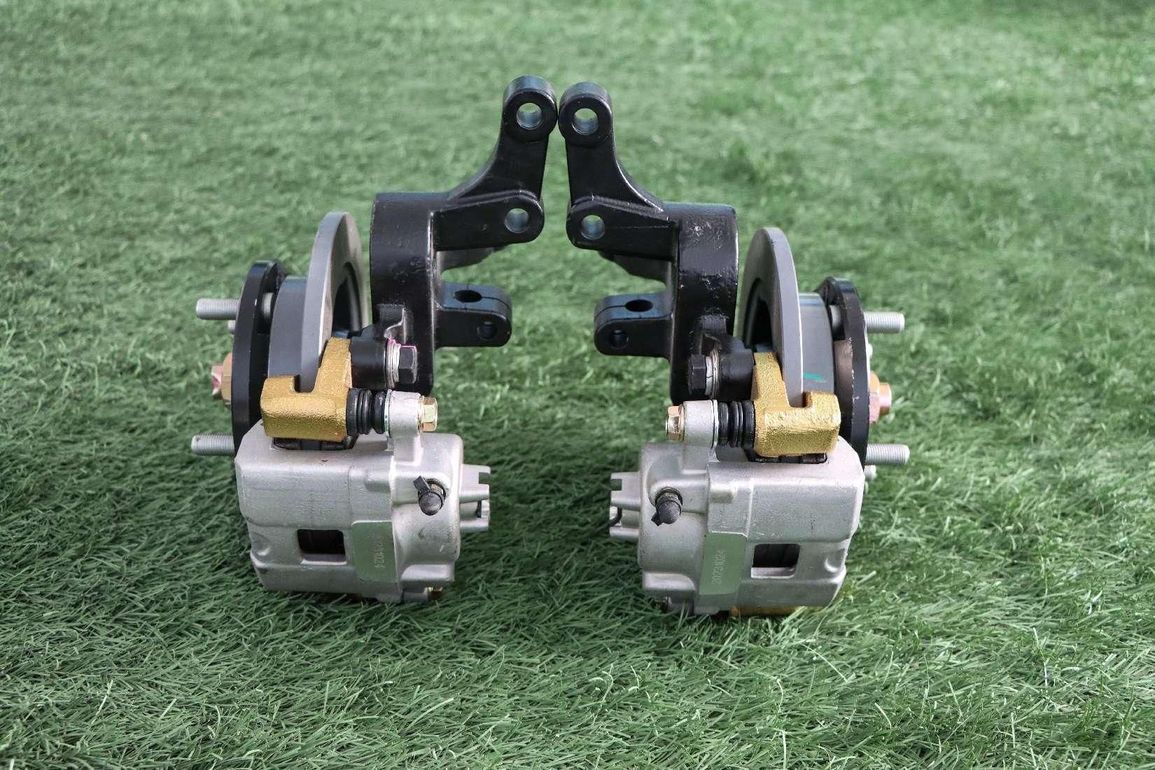

High-performance hydraulic disc brake caliper for electric utility vehicles, ensuring safety on steep gradients.
  • HOME
  • Products
  • Off-Road Electric Shuttle Series (2-10 Seats) | Resort & Mining Utility | Factory Direct – ORVIK

Off-Road Electric Shuttle Series (2-10 Seats) | Resort & Mining Utility | Factory Direct – ORVIK

Heavy-duty electric utility vehicles featuring elevated McPherson suspension and galvanized chassis. Available in 2 to 10-seater configurations. Ideal for resorts, mining sites, and industrial parks. High-temp ready. Inquire for FCL Price.

Get Factory Quote Now
Categories: , , , , Tags: , , , ,

Description

Built for the Rough. Engineered for Reliability.
The ORVIK Off-Road Shuttle Series is not a standard golf cart; it is a heavy-duty personnel carrier designed for challenging terrains.

  • Feature: The vehicle features a reinforced, integrated galvanized steel chassis (3mm thickness) and an elevated McPherson independent suspension paired with 23-inch mining-pattern tires.
  • Advantage: Unlike standard carts, this allows for superior ground clearance (240mm) and traction on gravel, sand, and uneven industrial surfaces, while the laser-treated, electrophoretic coating prevents rust even in humid or coastal environments.
  • Benefit: You get a longer fleet lifespan and significantly reduced maintenance downtime, ensuring your guests or workers are transported safely without interruption.

Note: Power system (Motor kW) and Battery type (Lead-acid or LiFePO4) can be customized based on your project requirements.
Designed to make your work flow.

Correction Note:

  1. Loading Qty: Calculated based on standard 40HQ internal dimensions. Actual quantity may vary by +/- 2 units depending on packing method (CBU vs SKD).
  2. Configurations: “2+2”, “4+2” etc. refer to forward-facing seats + rear-facing flip seats.
Model Configuration 2-Seater 2+2 Seater 4-Seater 4+2 Seater 6-Seater 6+2 Seater 8-Seater 8+2 Seater
Dimensions (mm) 2500×1350×2000 2950×1350×2150 3150×1350×2150 3700×1350×2150 3900×1350×2150 4300×1350×2150 4700×1350×2150 5000×1350×2150
Curb Weight 450 kg 570 kg 570 kg 690 kg 690 kg 830 kg 830 kg 980 kg
Passenger Capacity 2 4 4 6 6 8 8 10
Motor Power 5KW AC 5KW AC 5KW AC 5KW AC 5KW AC 7.5KW AC 7.5KW AC 7.5KW AC
System Voltage 48V 48V 48V 48V 48V 72V 72V 72V
Battery Standard Lead-acid 150AH Lead-acid 150AH Lead-acid 150AH Lead-acid 150AH Lead-acid 150AH Lead-acid 150AH Lead-acid 150AH Lead-acid 150AH
Battery Option LiFePO4 Available LiFePO4 Available LiFePO4 Available LiFePO4 Available LiFePO4 Available LiFePO4 Available LiFePO4 Available LiFePO4 Available
Max Range

80 km

80 km

80 km

70 km

70 km

70 km

70 km

70 km
Max Speed 40 km/h 40 km/h 40 km/h 40 km/h 40 km/h 40 km/h 40 km/h 40 km/h
Climbing Ability 25° 25° 25° 20° 20° 20° 20° 20°
Wheelbase (mm) 1680 1680 2460 2460 3220 3220 3980 3980
Tires 23×10-14 (Off-road) 23×10-14 (Off-road) 23×10-14 (Off-road) 23×10-14 (Off-road) 23×10-14 (Off-road) 23×10-14 (Off-road) 23×10-14 (Off-road) 23×10-14 (Off-road)
Ground Clearance 240 mm 240 mm 240 mm 240 mm 240 mm 240 mm 240 mm 240 mm
Chassis Material Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel
Loading Qty (40HQ) Contact for Plan Contact for Plan Contact for Plan Contact for Plan Contact for Plan Contact for Plan Contact for Plan Contact for Plan

B2B Buying Guide & FAQ

What is the Minimum Order Quantity (MOQ)? Can I buy a sample?、

Our supply chain is optimized for FCL (Full Container Load) efficiency.

  • Bulk Orders: Standard MOQ is 1 Container (20GP or 40HQ).
  • Sample Policy: Yes, we support validation. Sample units are available at a “Partner Qualification Rate” (approx. 90% of the standard price) to help you test the market with lower risk

Are these vehicles legal for public road use?

Standard ORVIK models are engineered for Off-Road and Private Property Use (e.g., Resorts, Mines, Farms).

  • Customization: However, Street-Legal Compliance Customization is available for specific models (e.g., meeting L7e standards).
  • Action: Please contact our sales engineers to discuss your local registration requirements and feasibility

Can I customize the specifications for my market?

Yes. As a factory-direct source, we offer deep technical customization.

  • Climate Packages: “High-Temp Ready” (Middle East) or “Arctic Ready” (Russia/CIS)
  • Technical Specs: Customization includes Battery (Lead-acid/LiFePO4), Motor Power, and Chassis reinforcement

How do you handle spare parts and warranty?

  • Warranty: 1 Year for Vehicle Core, 5 Years for LiFePO4 Batteries.
  • Spare Parts: We recommend purchasing a “Suggested Spare Parts Kit” with your container order to ensure immediate local service and minimize downtime

What is the lead time for production?

Our standard production cycle is rapid—typically 8-10 days (Ex-Works) after deposit. This allows you to maintain a lean inventory while responding quickly to market demand



More FAQ: Faq Page

Product Inquiry

If you have any questions about this product, please fill out the form below and our team will get back to you shortly.

TAILORED COMMERCIAL MOBILITY SOLUTIONS

Need a specific configuration? From High-Temp battery cooling for the Middle East to Arctic-Ready heating systems, we customize our fleet to withstand your local climate challenges.
