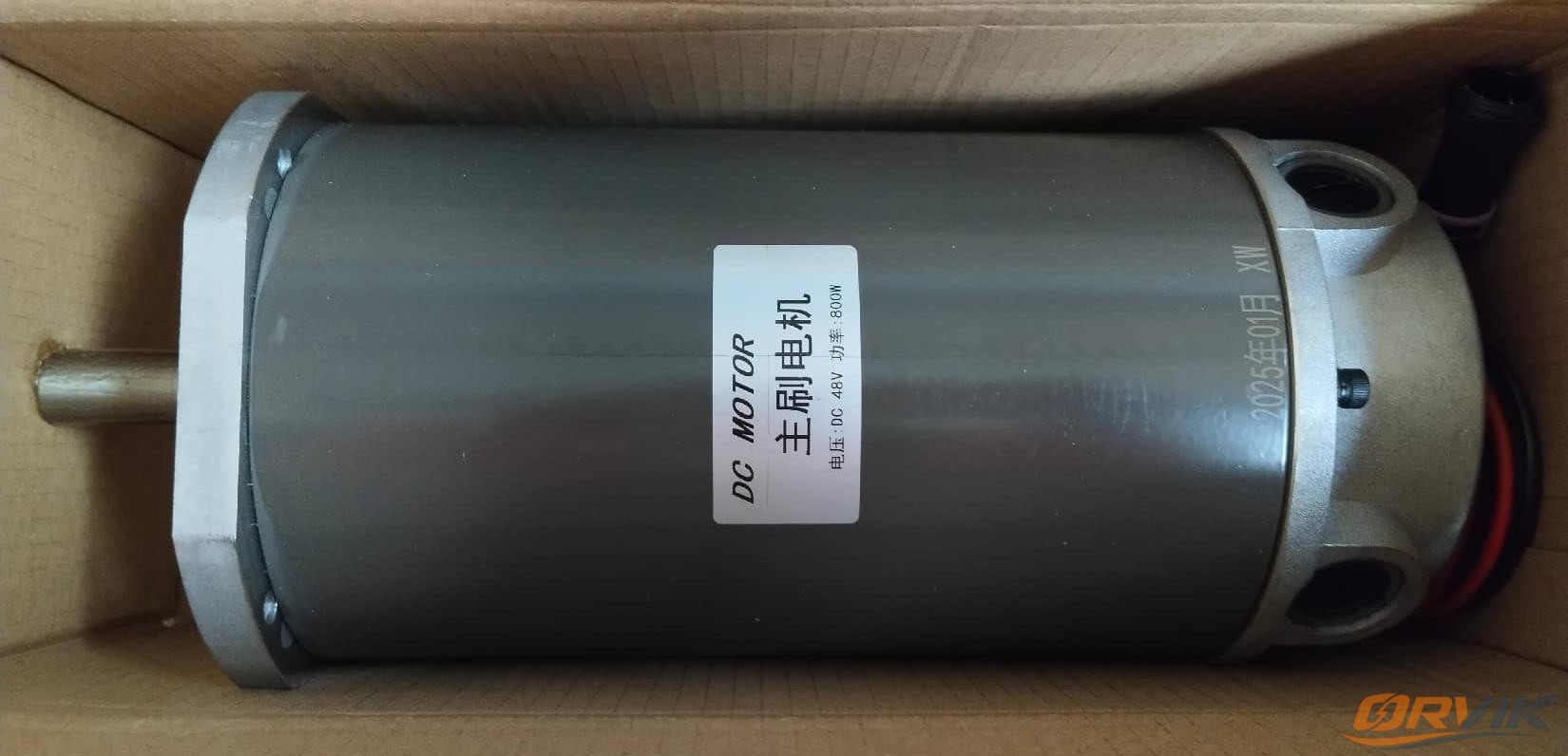

High-torque electric motor for sweeper main brush drive

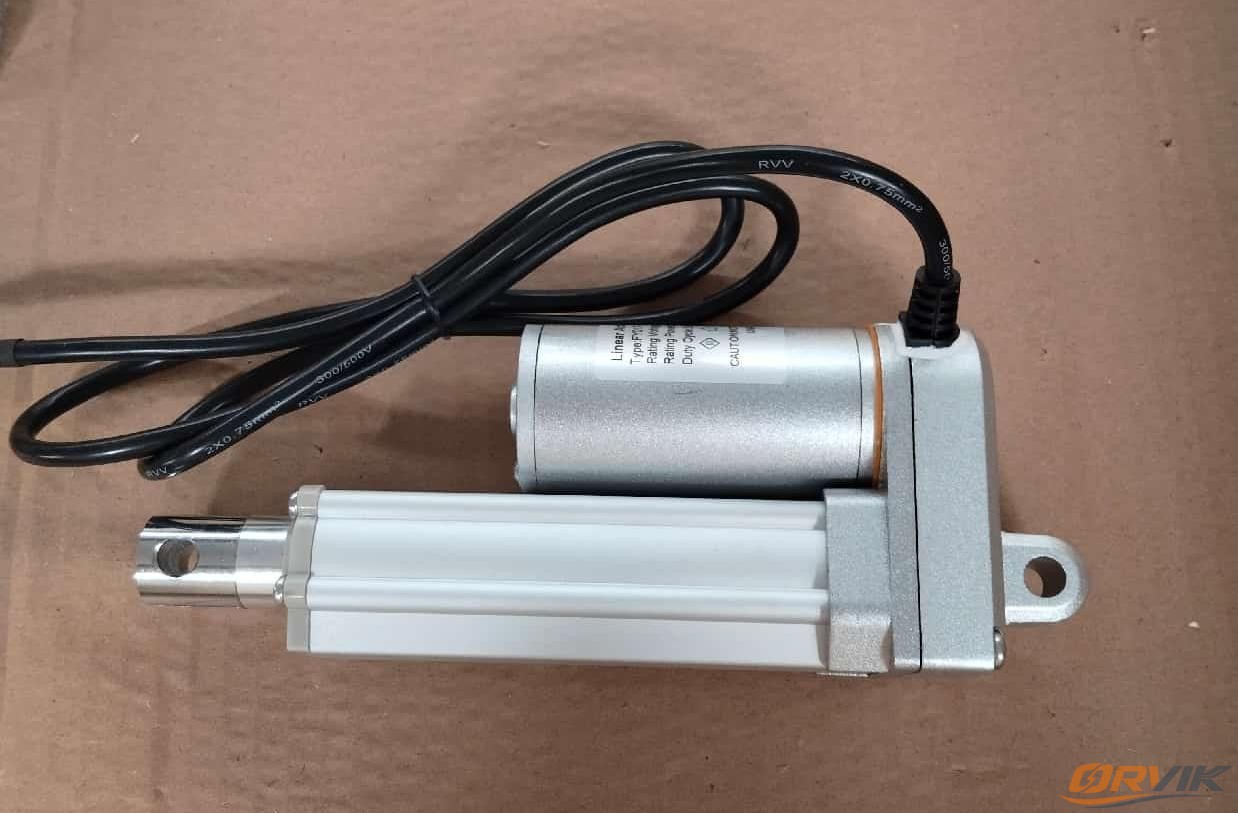

Electric linear actuator motor for sweeper brush lifting mechanism
Heavy-duty side brush replacement for industrial electric sweeper

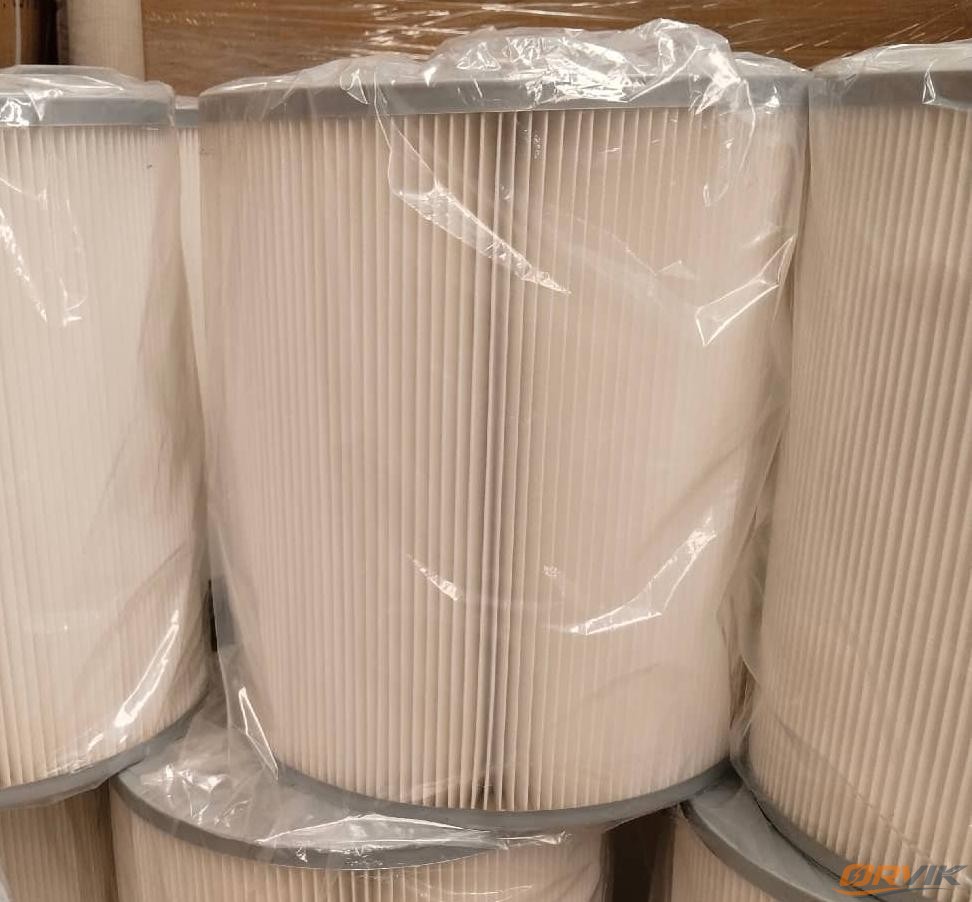

High-efficiency dust control filter cartridge for road sweeper

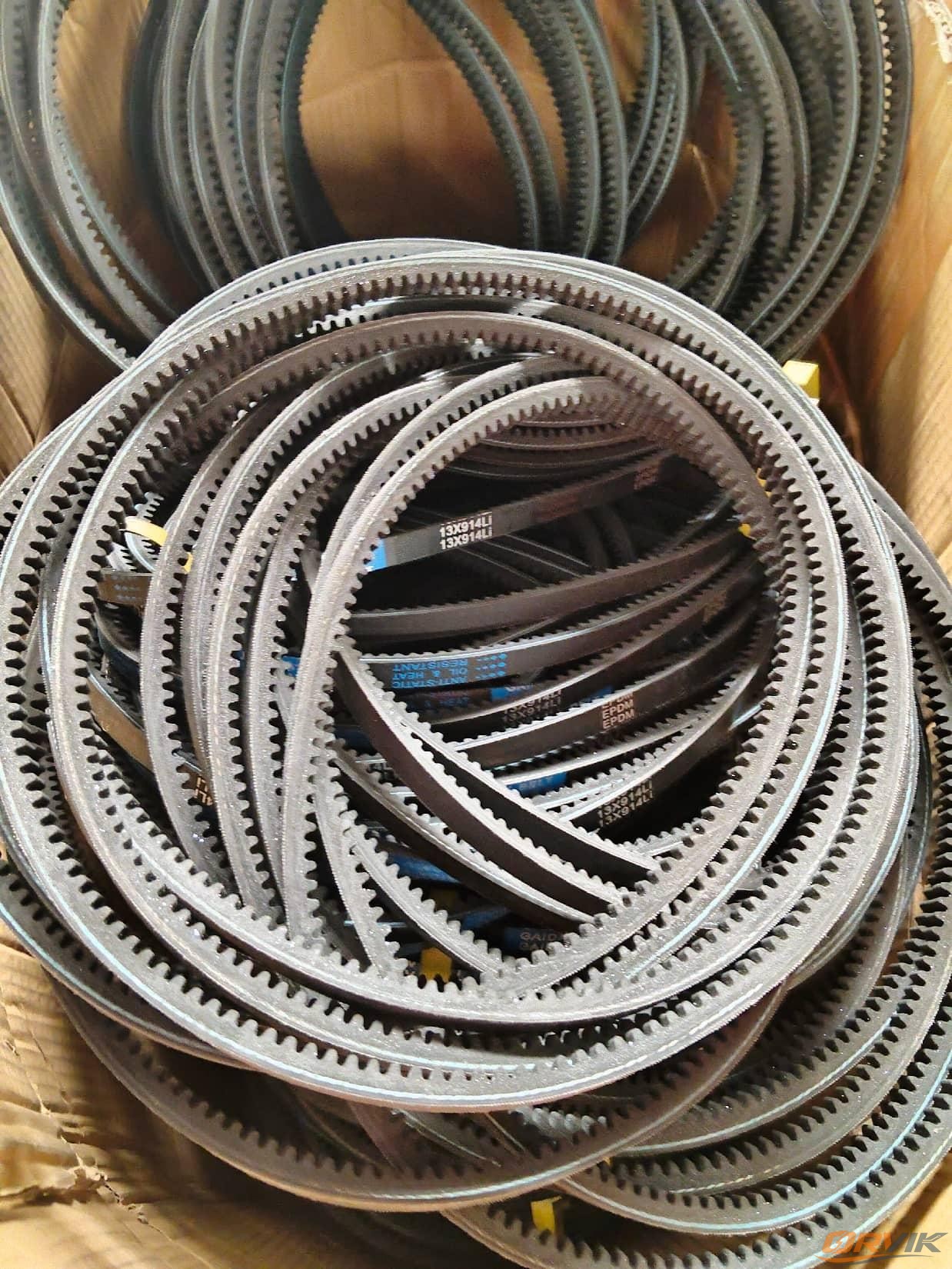

Industrial V-belt for electric sweeper drive system

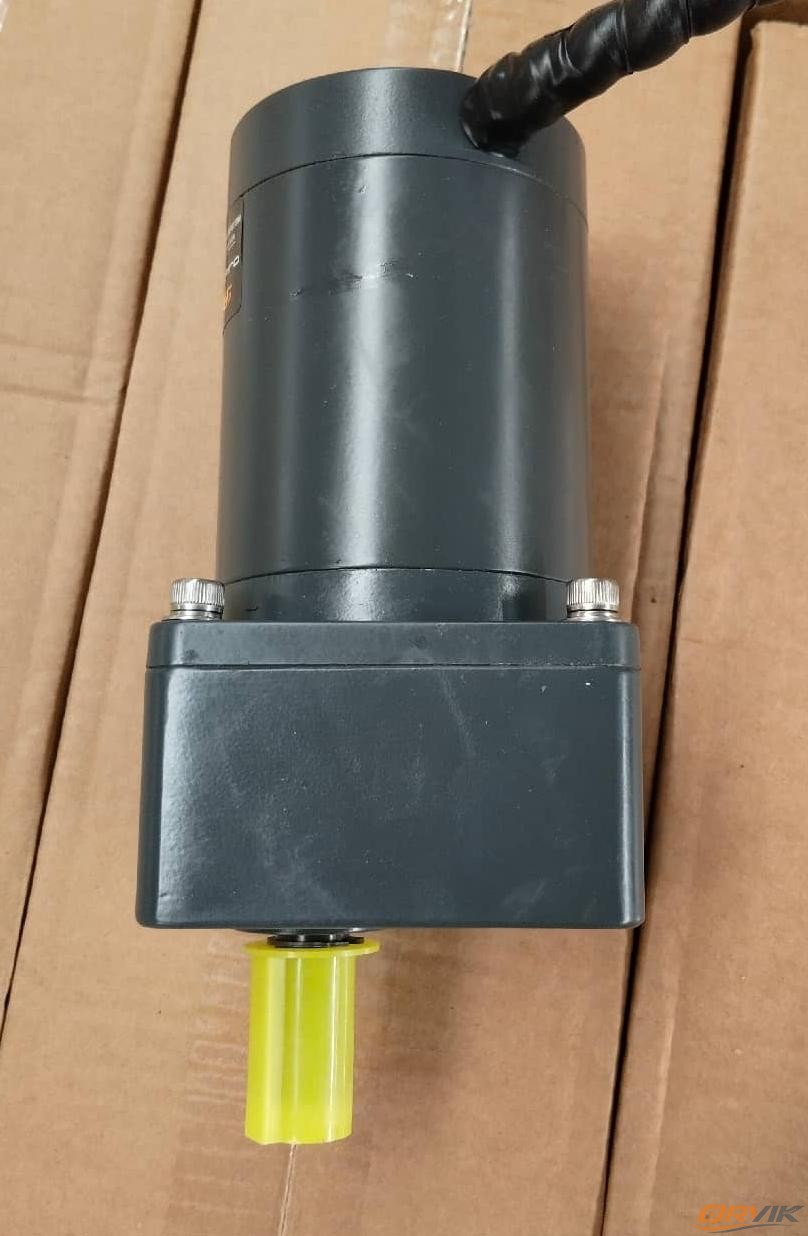

DC electric motor for sweeper side brush assembly

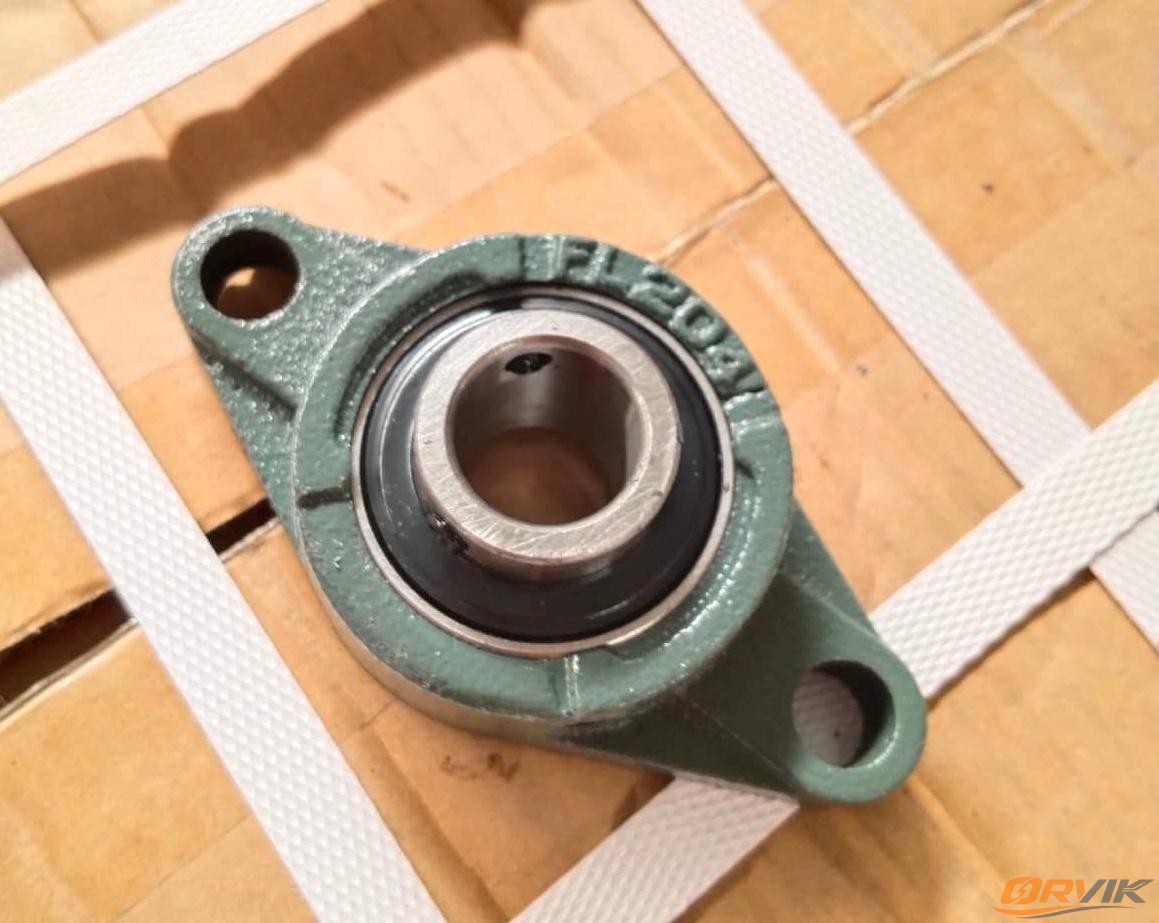

High-load sealed bearing for industrial sweeper moving parts

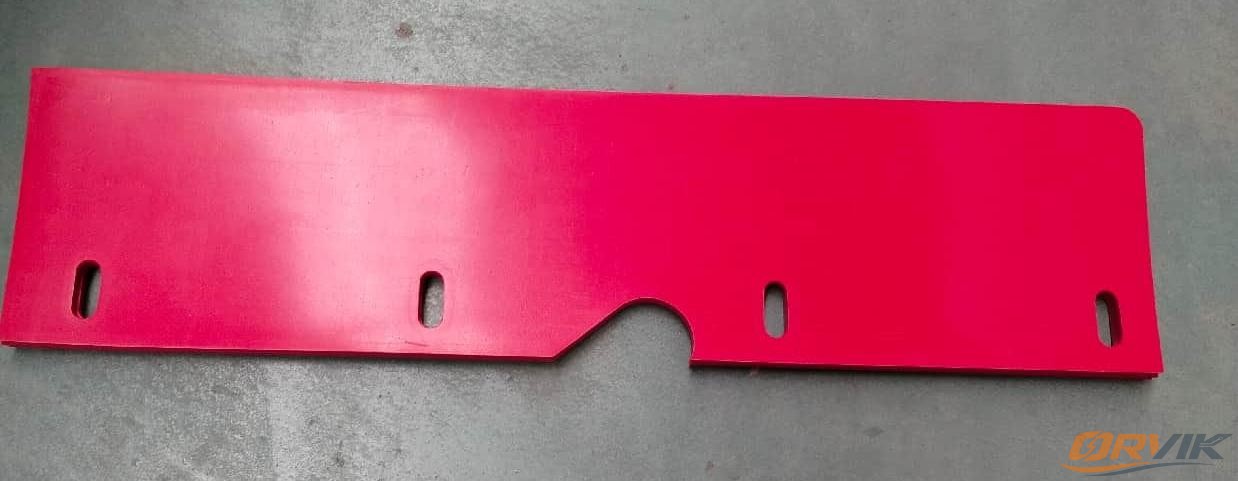

Durable rubber dust control skirt flap for sweeping machine
  • HOME
  • Products
  • ORVIK X3 Electric Street Sweeper 2300mm | Industrial Cleaning Vehicle Factory Direct

ORVIK X3 Electric Street Sweeper 2300mm | Industrial Cleaning Vehicle Factory Direct

Boost facility hygiene with ORVIK X3. Features 2300mm sweeping width, 300L water tank, and anti-corrosion E-coating chassis. Ideal for resorts and industrial parks. Inquire for FCL Price.

Get Factory Quote Now
Categories: , Tags: , , , , ,

Description

Maximize Coverage, Minimize Downtime.
The ORVIK X3 is a dedicated industrial sanitation solution designed to replace manual labor in large-scale environments such as municipal parks, factory compounds, and resort grounds.

  • Robust Construction (Feature): The entire vehicle chassis undergoes pickling, electrophoresis, and high-temperature powder coating.
  • Weather Resistance (Advantage): This automotive-grade process ensures superior corrosion resistance, making the X3 capable of withstanding humid coastal climates or harsh industrial environments without rusting.
  • Operational Efficiency (Benefit): With a massive 2300mm sweeping width and a 300L water tank, the X3 reduces refilling frequency and covers more ground per hour, significantly lowering your Total Cost of Ownership (TCO).

Customization: Power systems can be customized based on terrain requirements. Battery options include standard Lead-acid or upgraded LiFePO4 for longer lifecycles.
Designed to make your work flow.

Feature Specification
Model ORVIK X3
Dimensions (L*W*H) 2400 × 2300 × 2160 mm
Sweeping Width 2300 mm
Motor Power Drive: 2000W | Side Brush: 1100W | Main Brush: 150W
Battery System 48V 150Ah (Lead-acid Standard / LiFePO4 Optional)
Charging Smart Charger (Off-grid/Solar Ready options available)
Max Range / Work Time 3 – 5 Hours (Continuous Operation)
Tank Capacity Water: 300L | Garbage: 240L
Climbing Ability 30%
Braking System Hydraulic Dual-disc + Intelligent Electronic Brake
Tires Solid Tires (Puncture-proof)
Chassis Protection Acid Pickling + Electrophoresis + Powder Coating
Waterproofing IP67 Waterproof Wiring Harness & Connectors
Loading Qty (40HQ) Contact for SKD Calculation (Due to 2.3m width)

Additional information

Sweeping Width

2300 mm
Motor Power

Drive: 2000W
Battery System

48V 150Ah (Lead-acid Standard / LiFePO4 Optional)
Charging

Smart Charger (Off-grid/Solar Ready options available)
Max Range / Work Time

3 – 5 Hours (Continuous Operation)
Tank Capacity

Water: 300L
Climbing Ability

30%
Braking System

Hydraulic Dual-disc + Intelligent Electronic Brake
Tires

Solid Tires (Puncture-proof)
Chassis Protection

Acid Pickling + Electrophoresis + Powder Coating
Waterproofing

IP67 Waterproof Wiring Harness & Connectors
Loading Qty (40HQ)

*Contact for SKD Calculation (Due to 2.3m width)*
Dimensions (L*W*H)

2400 × 2300 × 2160 mm

B2B Buying Guide & FAQ

What is the Minimum Order Quantity (MOQ)? Can I buy a sample?、

Our supply chain is optimized for FCL (Full Container Load) efficiency.

  • Bulk Orders: Standard MOQ is 1 Container (20GP or 40HQ).
  • Sample Policy: Yes, we support validation. Sample units are available at a “Partner Qualification Rate” (approx. 90% of the standard price) to help you test the market with lower risk

Are these vehicles legal for public road use?

Standard ORVIK models are engineered for Off-Road and Private Property Use (e.g., Resorts, Mines, Farms).

  • Customization: However, Street-Legal Compliance Customization is available for specific models (e.g., meeting L7e standards).
  • Action: Please contact our sales engineers to discuss your local registration requirements and feasibility

Can I customize the specifications for my market?

Yes. As a factory-direct source, we offer deep technical customization.

  • Climate Packages: “High-Temp Ready” (Middle East) or “Arctic Ready” (Russia/CIS)
  • Technical Specs: Customization includes Battery (Lead-acid/LiFePO4), Motor Power, and Chassis reinforcement

How do you handle spare parts and warranty?

  • Warranty: 1 Year for Vehicle Core, 5 Years for LiFePO4 Batteries.
  • Spare Parts: We recommend purchasing a “Suggested Spare Parts Kit” with your container order to ensure immediate local service and minimize downtime

What is the lead time for production?

Our standard production cycle is rapid—typically 8-10 days (Ex-Works) after deposit. This allows you to maintain a lean inventory while responding quickly to market demand



More FAQ: Faq Page

Product Inquiry

If you have any questions about this product, please fill out the form below and our team will get back to you shortly.

TAILORED COMMERCIAL MOBILITY SOLUTIONS

Need a specific configuration? From High-Temp battery cooling for the Middle East to Arctic-Ready heating systems, we customize our fleet to withstand your local climate challenges.
INQUIRE ABOUT OEM
